WordPress Page Structure Diagram
WordPress Page Structure Diagram

WPtuts Draft – Mobie-Friendly WordPress Tutorial

Converting WordPress to be Mobile-Friendly

As mobile devices becomes less of a luxury and more of a necessity, the bottom line is becoming obvious: your fixed-width WordPress theme needs to be Responsive. Now’s the time to seriously consider converting your WordPress theme to be Mobile-Friendly. This tutorial will show you the basic steps to make your site fluid.


Tutorial Detail

  • Program: WordPress
  • Version (if applicable): 3.3.1
  • Difficulty: Moderate
  • Estimated Completion Time: 2-3 hrs.

Step 1 Create A Backup

First thing to do before beginning any significant coding changes is to backup your files. In this case you should simply copy your theme’s folder via ftp. Or, if you have ssh access to your Web server a simple

cp -R twentyten ./twentyten~

in WordPress folder

/home/yourwordpressroot/wp-content/themes

should do the trick.


Step 2 Deconstructing Your WordPress Theme

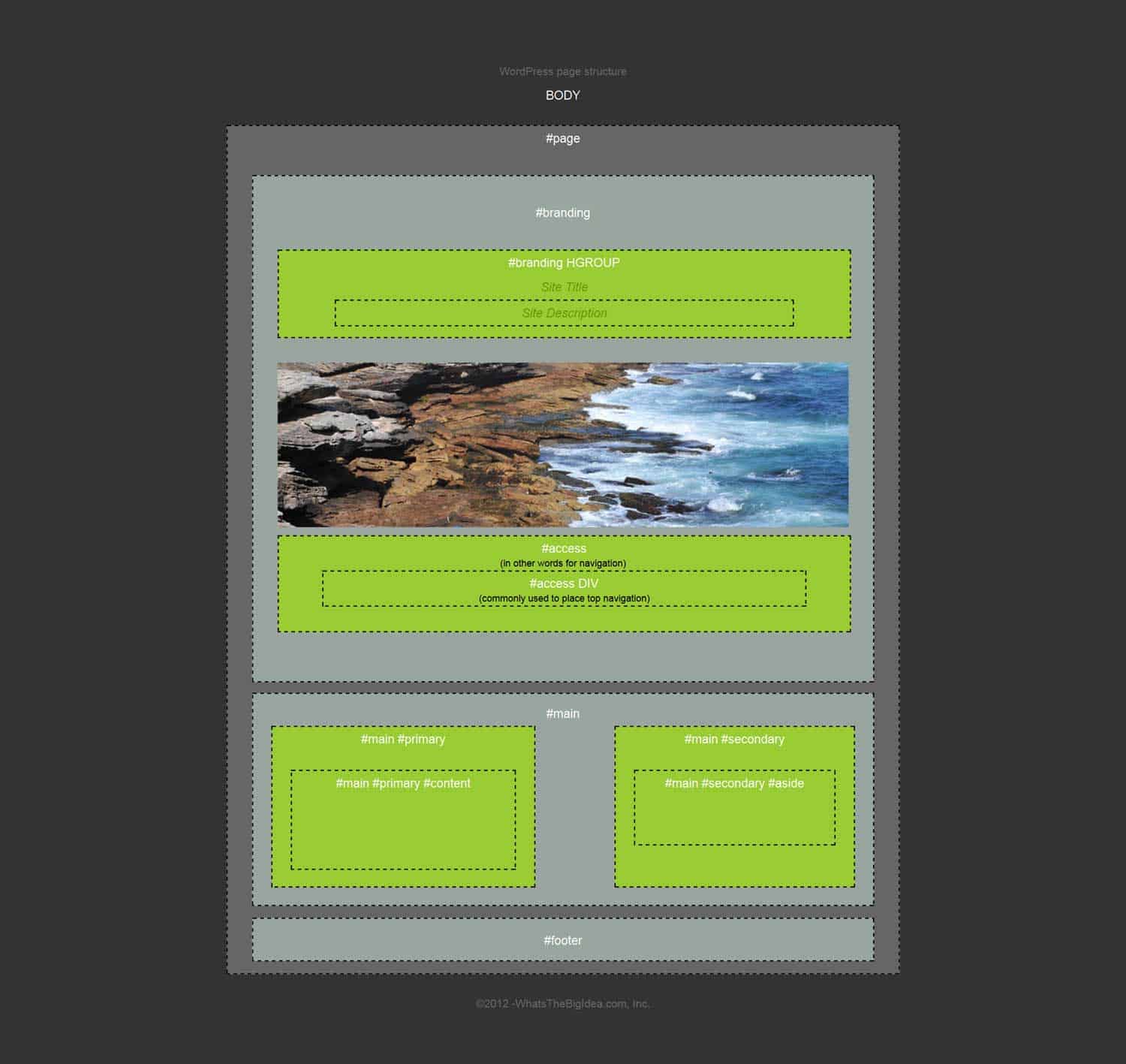

To better understand the way in which things work, it’s sometimes best to take it apart (visually). Let’s figuratively deconstruct your Web site by breaking down the basic components of the default (Twenty Ten) WordPress page structure. See “WordPress Page Structure Diagram”.

WordPress Page Structure

WordPress Page Structure Diagram


Step 3 Make Your Container Elements Fluid Via CSS and Media Queries

Prepare for the smaller screens by using media queries replacing CSS rules with new percentage properties. If you look at your your theme’s style.css you’ll need to replace the basic sections (DIV containers, i.e. #header, #main, #container, #primary, #secondary, #sidebar and #footer) fixed widths with percentage values. For example in the Twenty Ten theme you will add the following to your bottom of your style sheet:

@media screen and max-width 1024px {
  #wrapper
  {
    WIDTH:94%;
    MARGIN:20px auto;
  }

  #access,#access .menu-header,div.menu,#colophon,#branding,#main,#footer
  {
    WIDTH:100%;
    MARGIN:0 auto;
  }

  #branding
  {
    OVERFLOW:hidden;
  }

  #container
  {
    FLOAT:left;
    WIDTH:99%;
    MARGIN:0 -25.5319149% 0 0;
  }

  #content
  {
    WIDTH:68.5957447%;
    MARGIN:0 29.787234% 0 20px;
  }

  #primary,#secondary
  {
    OVERFLOW:hidden;
    WIDTH:23.40425535%;
  }

  #site-title,#site-info
  {
    WIDTH:74.4680851%;
  }

  #footer-widget-area .widget-area,#site-generator,#site-description
  {
    WIDTH:23.40425535%;
  }
}

@media screen and max-width 660px {
  #wrapper
  {
    WIDTH:90%;
    MARGIN:5px auto;
    PADDING:0 3%;
  }

  #access,#access .menu-header,div.menu,#colophon,#branding,#main,#footer
  {
    WIDTH:100%;
    MARGIN:0 auto;
  }

  #branding
  {
    OVERFLOW:hidden;
  }

  #site-title
  {
    WIDTH:100%;
  }

  #container
  {
    FLOAT:left;
    WIDTH:100%;
    OVERFLOW:auto;
  }

  #content
  {
    WIDTH:99%;
    MARGIN:0;
  }

  #primary,#secondary
  {
    FLOAT:left;
    OVERFLOW:hidden;
    WIDTH:99%;
  }

  #secondary
  {
    CLEAR:left;
  }

  #site-generator,#site-description,#site-info,#site-title
  {
    CLEAR:left;
    FLOAT:left;
    WIDTH:95%;
    MARGIN:0;
    PADDING:0;
  }
}

CSS3 Media Queries

Older versions of Internet Explorer don’t recognize the newer elements of HTML5 markup and/or media quueries. It’s necessary to link to two JavaScript files that fixes the IE8 (and lower) deficiencies. Place these links into the head of your page’s code:

<!--[if lt IE 9]>
    <script src="http://html5shim.googlecode.com/svn/trunk/html5.js"></script>
 <script src="http://css3-mediaqueries-js.googlecode.com/svn/trunk/css3-mediaqueries.js"></script>
<![endif]-->

Step 4 Make Your Images Fluid

In the Fluid method the same large image is used for all screen sizes, which adversely affects load times. For example; imagine a 1000 pixel image having to load on a Mobile phone, only to end up being scaled back down to 100 pixels. That’s a waste of time and bandwidth, as well as very taxing on a mobile device’s resources. The best [overall] solution is referred to as Progressive Enhancement. In this case we’ll load smaller versions of an image for smaller screen sizes. Via JavaScript, an approximation of the closest size is determined, loaded and made fluid via CSS.

WordPress automatically adds the height and width attributes to all images that are dynamically served to the page’s code. So, in order to achieve the fluidity we need to remove them, by placing the code below between the head tags of your header.php file:

<script src="http://code.jquery.com/jquery-latest.js"></script>
<script type="text/javascript">
jQuery.noConflict();
jQuery(document).ready(function($){
    $('img').each(function(){
        $(this).removeAttr('width')
        $(this).removeAttr('height');
    });
});
</script>
Also, add the CSS rule below to your styles.css:
img { max-width: 100%; height: auto; width: auto9; /* ie8 */ }

Go Ahead, Do it the Easy Way Why Don’t You…

There are several WordPress plugins that help in making images responsive. For the sake of expediency, using a few plugins will save us time. If you’re not ready to delve into code, find a SIMPLE well-written plugin. To make our images responsive, WP Fluid Images at http://wordpress.org/extend/plugins/wp-fluid-images/.


Step 5 Some more code Tidbits

There are a number of other iPhone considerations that need to be addressed.  Two that will undoubtedly arise are text-size adjust and scale. Here are two additional lines of code; the first you’ll need to add to your styles.css file and the second you’ll need to add between your page’s head tag:

html { -webkit-text-size-adjust: none; }
<meta name="viewport" content="width=device-width; initial-scale=1.0">
